UV-KUB 3 - New generation of Mask aligner

First compact system with UV-LED light source

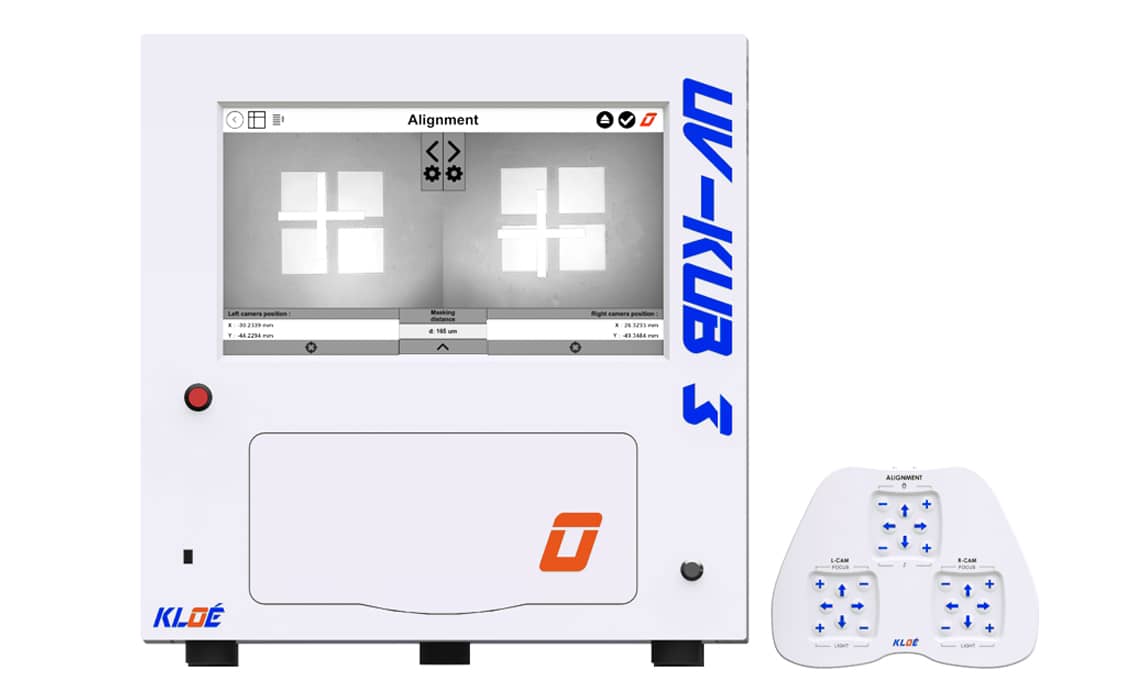

The mask aligner UV-KUB 3 is the first mask alignment system equipped with a UV-LED light source, that provide an unrivalled collimation and homogeneous exposure, on the international market.

Compact, easy to use and efficient, the mask alignment system UV-KUB 3 allows alignment up to 7" photolithography mask with substrates up to 6" in a cube volume of 48cm size.

Thanks to its removable photomask holder, the handling of fragile mask is considerably reduced: you can change the substrate as often as you want without touching the photomask.

Compatible with all standard photoresists: AZ, Shipley, SU8 and K-CL

Request a quote
image du produit

A new approach of mask alignment

The new generation of mask aligner UV-KUB 3 is particularly suited for the production, through soft lithography, of microfluidic chip, integrated optical circuits, microelectronics, MEMS, semiconductor technology...

Fully secure thanks to its dust-proof hood, this equipment is the only solution on the market that democratizes precision photolithography without requiring a cleanroom type environment.

Resolution and alignment precision

Its design makes possible the realization of microstructures below 1 µm over the entire 4" or 6" work surface with an alignment precision of less than 1 µm.

Advantages of the UV-LED exposure technology

  • illumination source devoid of undesirable thermal effects
  • perfectly monochromatic
  • lifetime of the LEDs > 10 000h: requires no specific maintenance

A compact mask alignment system

Beyond its size reduced to a minimum, its internal supporting structure dispenses the need for anti-vibration table, combined with low power consumption, the UV-KUB 3 is the ideal tool to control the operating costs.

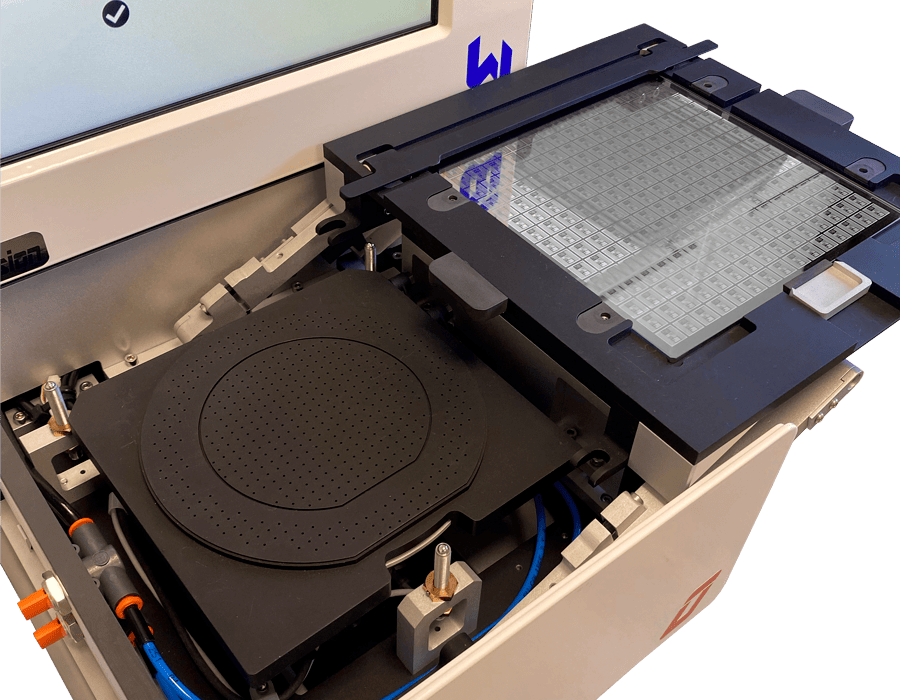

A removable photomask holder

The photomask holder is removable: you can change the substrate as often as you want without touching the photomask. It allows to save a lot of time in production mode and thus, improve the efficiency of the automatic prealignment function.

User-friendly and efficient

With the UV-KUB 3 make precision mask alignments of less than 1 µm in few minutes with the ergonomic control joypad or with the help of the dynamic and intuitive tactile interface.

Low cost equipment

UV-KUB 3 is the less expensive high resolution mask aligner offered in the international market place.

Special field of application of the mask aligner 6 inches version

The mask aligner UV-KUB 3, 6 inches version, is perfectly well suited for:

  • semiconductor technology
  • microfluidics lab on a chip fabrication


New generation of UV-LED mask aligner

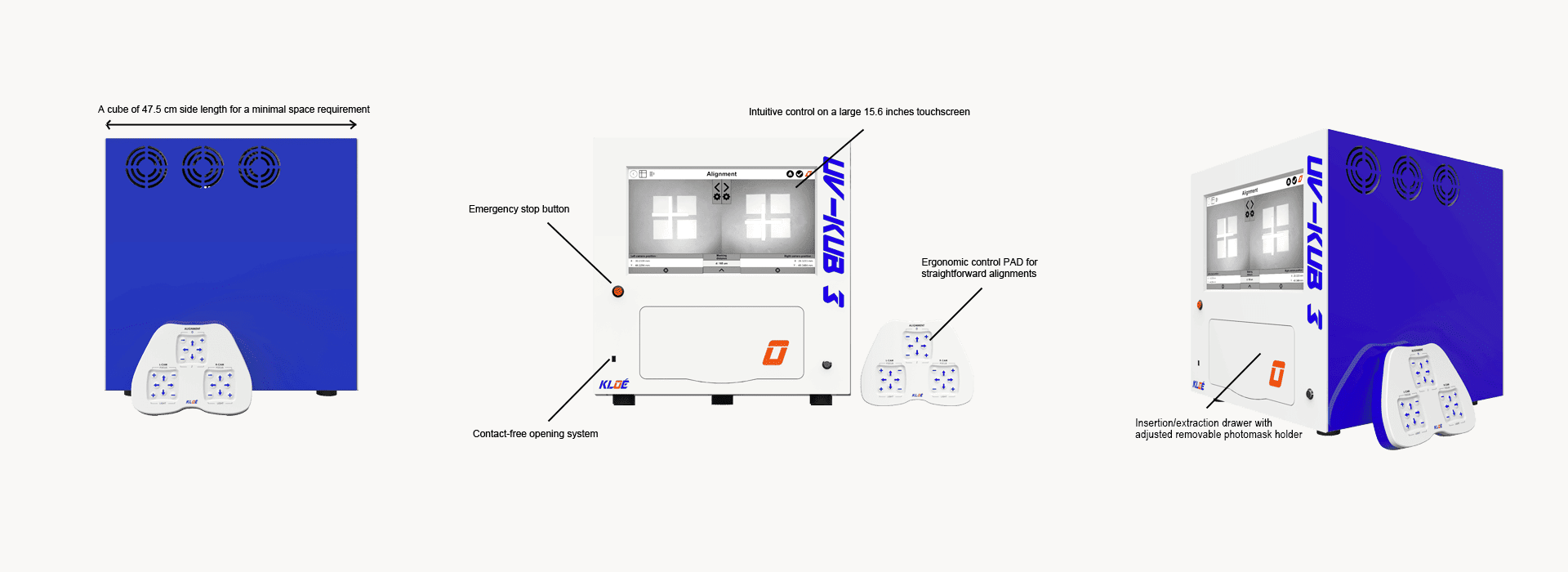

Explanatory diagram of the structure of mask aligner UV-KUB 3

High quality collimated and homogeneous exposure

Thanks to a divergence angle less than 2°, you can reach resolutions down to micrometre scale without needing a vacuum mode.

It is thus possible to work on thick layers (several hundreds of microns) with a perfect rendering of the edges, with no roughness. This allows to reach 10x100 aspect ratio.

  • Resolution: 1µm
  • Alignment accuracy: 1µm
  • Accepted masks size: up to Ø 5" or Ø 7" respectively with 4'' and 6'' version
  • Accepted substrate size: Ø 2" - Ø 4" - Ø 6" and 50 x 50mm - 100 x 100mm
  • Visualization system resolution: 1,5µm
  • Mask/substrate measuring distance resolution: 0,5µm
  • θ substrate displacement resolution: 5.10-4°
  • XYZ substrate displacement resolution: 0,4µm
  • Wavelength: 365nm +/- 5nm
  • Power density: 35mW/cm² +/- 10%
  • Substrate warm-up during exposure: < 1°C
  • Exposure cycle: between 1s and 1h
  • Number of programmable cycles: > 100
  • Dimensions: 475 x 480 x 515mm
  • Weight: 55kg / 121lbs
  • Displacement control: USB 24 key PAD
  • Colour touchscreen: 15.6 inches
  • Power supply: 100V/240V - 50Hz/60Hz
  • Consumption: 180W
