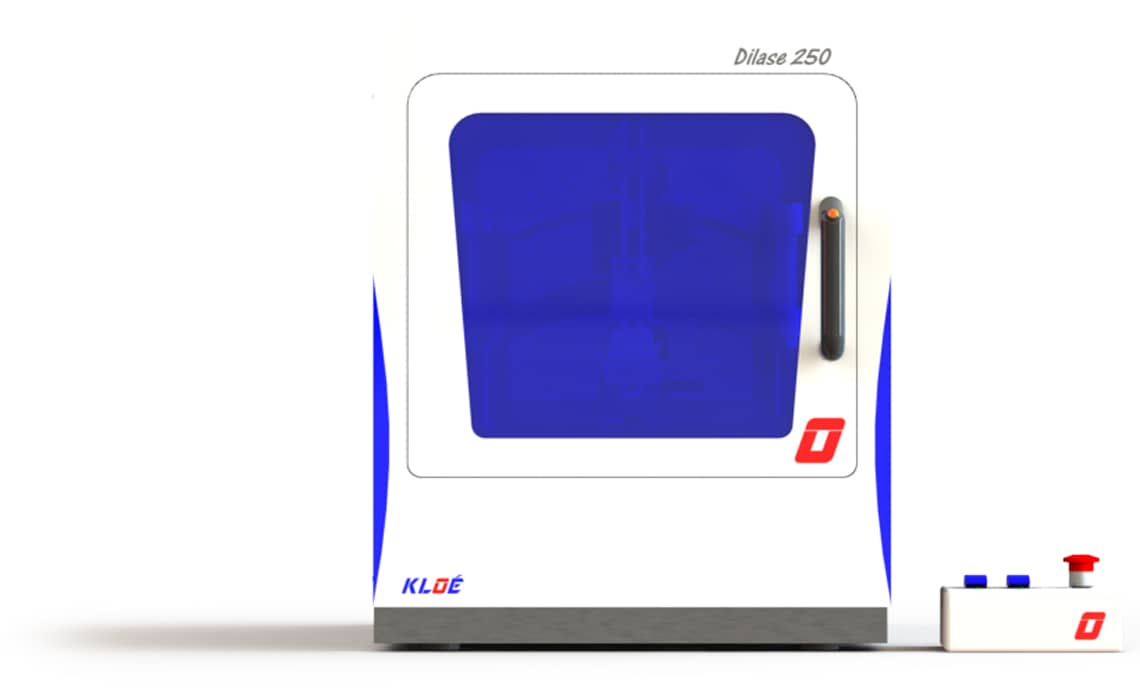

Tabletop laser lithography system: Dilase 250

Direct laser writer

The maskless equipment Dilase 250, a versatile and compact equipment, gives access to laser lithography for a wide range of new applications such as microfluidics, micromechanics or photonics. Dilase 250 is especially well suited for fast prototyping, photomask fabrication and microfabrication directly on thin or thick film substrates of several tens or hundreds of microns.

Request a quote

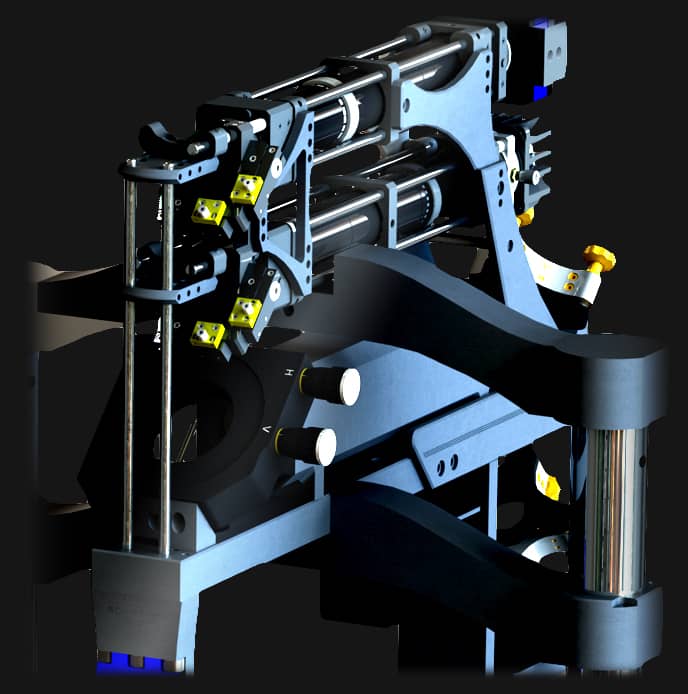

Specific optical treatment chain of direct laser writer Dilase 250

An innovative technology

Kloe has developed a new approach of laser photolithography that is mainly sustained by two major innovations:

Vectorial writing mode

Which ensures a perfect rendering of edges without stitching nor roughness.

Specific optical treatment line

Our unique optical treatment chain induces a large depth of focus and guarantees a perfect performance stability of the equipment. That enables the writing into thick photoresists with the same rendering than into thin films, with an aspect ratio warranty at minimum 1x20.

Tabletop direct laser writing system

Explanatory diagram of the structure of direct laser writer Dilase 250

High depth of focus

The high depth of focus resulting from the specific optical treatment line designed by Kloe, allows to write into thick films as easily than into thin films with the same edge verticality and very low roughness.

Computer screen with software DilaseSoft to manage direct laser writer Dilase 250

Specific softwares for direct laser writing equipment Dilase 250

The software suite DilaseSoft and KloeDesign comes in standard with all commercial Dilase equipments. Perfectly adapted to multi-user operation, this software suite provides you with concrete answers to common requirements of microfabrication, from prototyping to production.

KloeDesign: a computer assisted design software

It allows you to quickly draw all kind of patterns such as optical, microfluidic, microelectronic circuits thanks to a pre-defined library objects available to the user.

Moreover, KloeDesign enables the upload of usual standard format of the industry, as DXF and GDSII, in order to quickly integrate your environment (production chain).

DilaseSoft to manage the lithography equipments

DilaseSoft ensures the production of all type of patterns by direct laser writing. Both ergonomics and performances have driven the development of this support.

Performances:
  • Linear writing speed: up to 100mm/s
  • Address grid​: 100nm standard, 40nm optional
  • Repeatability: 100nm
  • Accepted wafers​: from 3x3mm² to 4” and up to 5” for square substrates
  • Accepted substrate thickness: from 250µm to 5mm
  • Laser beam width: from 1µm to 50µm
  • Aspect ratio: from 10 up to 20
  • Realignment precision: <1µm
Specifications:
  • Dimensions: 550 x 740 x 710mm
  • Available laser sources​: 375nm or 405nm
  • 1 beam size
  • Video realignment system
  • Accepted files format: DXF, GDSII, LWI
  • Motorized focal length
  • Integrated design software : KloeDesign, DilaseSoft
  • Three writing modes: vectorial, scanning or a combination of both
